MINI GAS FOGGER IZ-120
The IZ 120 is the best solution out there for small pest control. It is a lightweight and portable machine and produces the required volumes of fog. IZ 120 is widely used by pest controllers, government agencies, hotels, schools, hospitals, pigpens, cattle sheds, poultry farms, pest control in residential areas and others.
Model: IZ120
|
Fuel |
Liquefied Gas |
|
Chemical tank capacity |
2.0 |
|
Chemical consumption |
2.0 L/h |
|
Size |
510 x 340 x 195 (mm) (Big Box 5pcs) 970 x 530 x 370 (mm) |
|
Weight |
2 kg |
|
No return system |
2 EA |
PORTABLE SMOKE FOG IZ-150AS
IZ 150AS is a powerfully built and highly versatile machine. It comes with an automatic start-up system and is made of light and resistant material. You can use it for hours for pest control such as litter beetle control, stink bug control, malaria mosquito control and so on. Its combustion pipe is made with a special stainless alloy, which is very good at resisting heat and erosion.
Model: IZ150AS
|
Power of operating |
18.9kw / 25.7hp / 16.500 Kcal/h |
|
Length |
1.200 mm |
|
Width |
220 mm |
|
Height |
330 mm |
|
Weight |
8.9 kg |
|
Proper voltage |
DC6V |
|
Chemical tank capacity |
6.5 L |
|
Fuel tank capacity |
1.5 L |
|
Fuel consumption |
1.5 L/h |
|
Spouting chemical quantity |
20 L/h (max 60 L/h) |
|
Cooling system |
Air-cooled |
|
Spouting particle size |
5 - 50 microns |

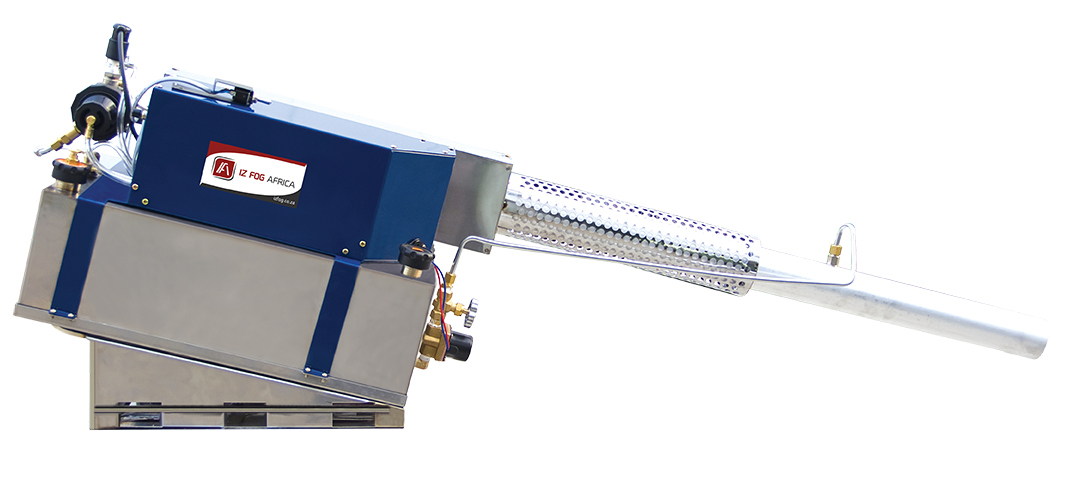

MOUNTED IZ-300
IZ-300 is a strong and rugged mountable thermal fog machine that can be easily mounted on a motorbike as well as on several other vehicles so that it can be used to apply products over large areas in farms, forests and mines that are difficult to access by foot. It can be used for both the production of smoke and the production of mist, based on your requirements.
IZ-300 comes with a solenoid valve, which makes it easy to apply as well as a safety system with an automatic shut off. The system shuts down automatically after detecting any abnormal operation with the machine. IZ-300 is fitted with a nozzle that swivels to the right at 50° and to the left at 50°, which helps with better and more accurate application without having to move the vehicle.
Model: IZ300
|
Power of operating |
18.9 kw / 25.7hp / 500 kcal |
|
Proper voltage |
DC 12V |
|
Chemical tank capacity |
17 L |
|
Spouting chemical quantity |
20 - 40 L/h |
|
Chemical tank capacity |
2 L |
|
Fuel consumption |
2 L/h |
|
Spouting chemical quantity |
1 EA |
|
Cooling system |
Air-cooled |
|
Spouting particle size |
0 - 30 µ |
|
Measurement (L x W x H) |
1.300 x 315 x 465 (mm) |
|
Weight |
20 kg |
MOTOR CYCLE DISINFECTION SYSTEM IZ-1000W
The IZ 1000W is an innovative vehicle machine that serves several applications such as providing spray, mist and smoke in remote areas that are inaccessible by foot. It is used for pest control applications such as control of malaria mosquitoes, litter beetles, stink beetles, and more.
Model: IZ1000W
|
Motor Cycle |
ECONOMIC 110 (110CC) Fuel consumption Rate 1L / H / 30km, 3Wheel, Front and Rear gear system, assistance braking system 100% safety |
|
|
Length Spray system |
Engine |
Key and Recoil start Common 5.5HP 1.800RPM Maximum 7.5HP, 2.000RPM |
|
Sprayer |
80A automatic pressure control pressure 30-80kg/㎠ RPM 800 - 1.200 Engine power 5HP - 7HP |
|
|
Spray system |
The ground spray system spray gun |
|
|
Chemical tank capacity |
100 L stainless steel tank |
|
|
Smoke / Mist Equipment |
Power of operating |
18.9 k / 25.7hp / 16.500 kcal / h 2units |
|
Proper voltage |
DC 12V (chemical tank capacity: 90 L) |
|
|
Fuel tank capacity |
5 L x 2 |
|
|
Fuel consumption |
1.5 L/h X 2 |
|
|
Spouting chemical quantity |
20 L/h (Max 60 L/h) x 2 |
|
|
Cooling system |
Air cooled |
|
|
Spouting particle size |
5 - 30µ |
|
|
Size (L x W x H) |
2.550 x 1.100 x 1.300 |

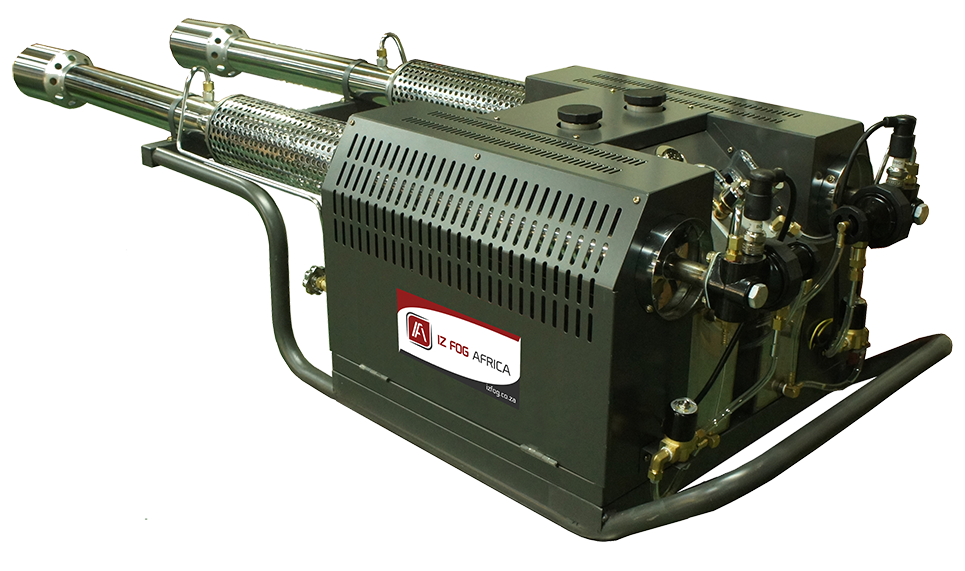

TRUCK MOUNTED IZ-400
IZ-400 is a powerful double-barrelled truck mounted thermal fog machine that is used for a variety of applications that need a large output of chemicals as well as a production of an enormous volume of smoke. It is the perfect machine for the control of malaria mosquitoes in large areas such as cities, campsites and mines. It is also used for Litter Beetle control in the poultry industry and for Stink bug control in the macadamia industry as well as for the production of smoke to protect grapes from frost.
Model: IZ400
|
Chemical tank capacity |
150 L |
|
Max. spouting quantity |
200 L/h |
|
Fuel tank capacity |
7 L/x2 |
|
Fuel consumption |
4 L/h |
|
Spouting pipe |
2 ea |
|
Pressure gauge quantity |
2 kg/㎡ |
|
Cooling system |
Air-cooled |
|
Length |
1.650 mm |
|
Width |
510 mm |
|
Height |
380 mm |
|
Weight |
43 kg |
