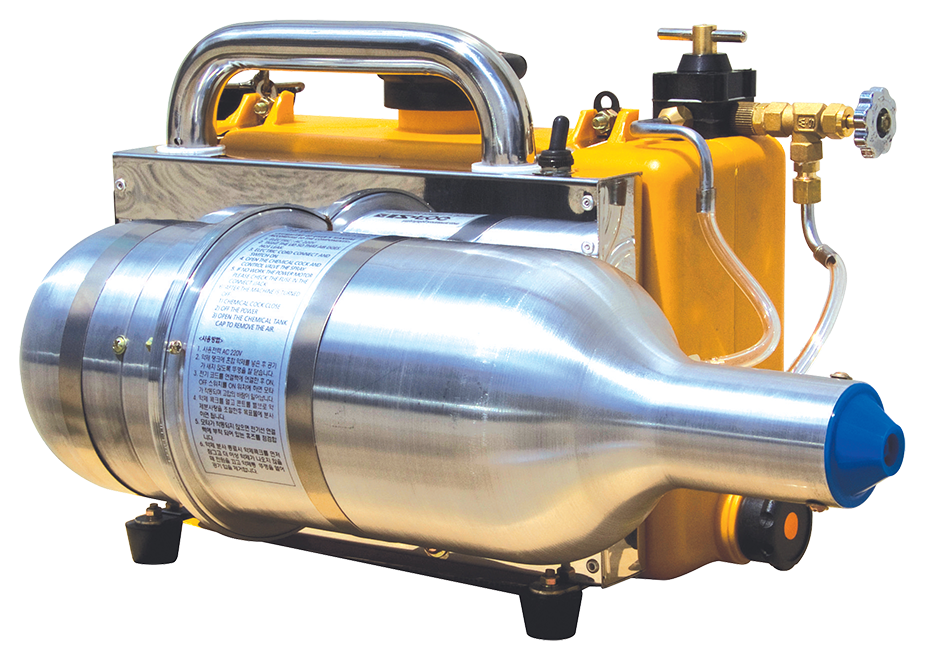

ELECTRIC POWERED ULV SPRAYER IZ-33
The IZ-33 ULV machine is highly efficient and extremely silently. It is used for ULV (Ultra Low Volume) spray applications and can be used for indoor as well as outdoor applications. It is very easy to handle and use.
It is widely used for the application of disinfectants, fungicides, deodorizes, odour neutralizers, water (humidification), bactericides, insecticides for both residential and industrial applications, including in farms, horse stables, greenhouses, warehouses, animal care facilities, cheese factories, hotels, restaurants, schools, medical facilities and more.
Model: IZ33
|
Start Mode |
Automatic |
|
|
Power Supply |
AC 220V by Electric 1.6KW |
|
|
Arrival Length of spray |
12m |
|
|
Dimension (L x W x H) |
460 x 290 x 260 (mm) |
|
|
Weight |
5 kg |
|
|
Chemical tank capacity |
7 L |
|
|
Chemical Discharge Rate (max) |
60/H |
|
|
Particle Size |
5 - 50 Micron |
|
|
Main Body Material |
Aluminium & stainless |
|
|
Chemical Tank Material |
Plastic |
|
|
Motor RPM |
20.000/min |
|
TURBO POWER ULV SPRAYER IZ-12001
The IZ-12001 is a user friendly and ease to operate machine. It is built from the highest quality materials and will give reliable usage with very little maintenance. It is largely used for the combat of malaria mosquito, stink bug, tobacco beetle and general insects.
Model: IZ-12001
|
Specification |
Size: L x W x H: 1100 x 700 x 900 (cm) |
|
Spray Nozzle: 4 nozzle spray hole with spray gun |
|
|
Moving caster |
|
|
Control box |
|
|
Spray Hole 180˚ Revolve (left and right) up and down 45˚ move |
|
|
Spray System Automatic on and off |
|
|
Engine |
Air cooling system 4 cycle gasoline engine |
|
Start motor recoil start 2 system |
|
|
Normal horse power 5H.P, 1800RPM |
|
|
Max horse power 8HP, 2000 RPM |
|
|
Fuel consumption normal 2.3 L/h max 2.7 L/h |
|
|
Proper voltage DC 12V |
|
|
Air blower |
Revolutions: 3.600 RPM |
|
Discharge capacity: 30 ㎥/min |
|
|
Pressure: 380 kg/㎠ |
|
|
Sprayer |
Automatic pressure system 50 A |
|
Pressure: 30 – 50 kg/㎠ |
|
|
Discharge capacity: normal 42 L/min, max 66 L /min |
|
|
Revolutions: 700 – 1.200 RPM |
